LS026
Liansheng
026
| Place of Origin | Jiangsu, China |
| Brand Name | Liansheng |

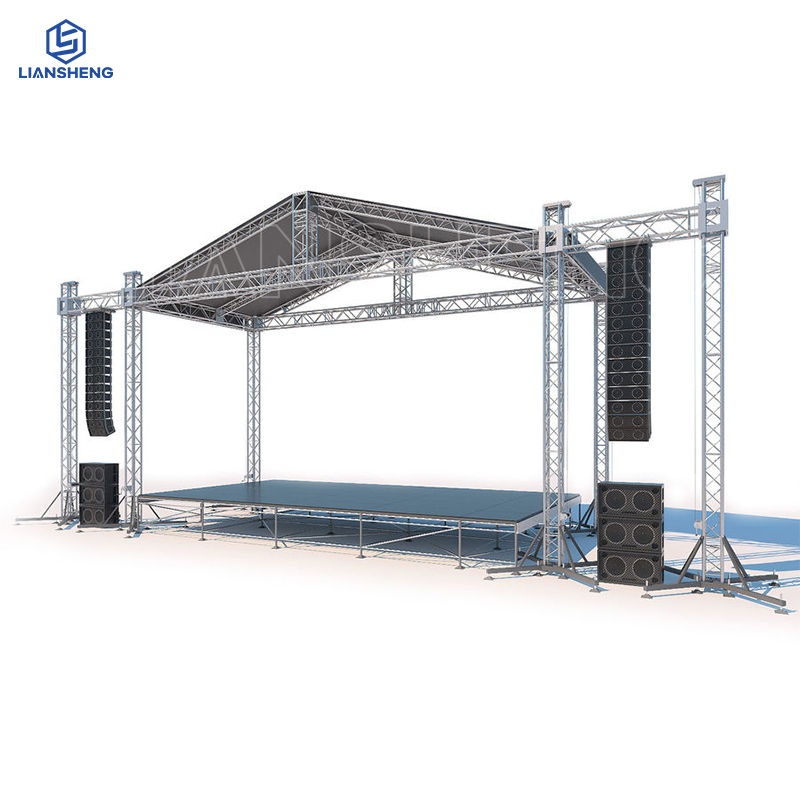

| Product Name | Wholesale Truss Aluminum LED Screen Lighting Truss Display Customized Top Design Event Stage Platform |
| Material | Aluminum Alloy /Plywood |
| Stage size | 1.22mxx1.22m,1.22mx2.44m |
| Adjustable Height | 0.4-0.6m, 0.6-0.8-1.0m, 0.8-1.0-1.2m |
| Loading capacity | 750 kgs/sqm |
| Certification | CE,ISO,TUV |
| Application | Events, Party, Concert, Exhibiton, School, Wedding,etc. |
| Feature | adjustable legs, anti-rust,mobile,portable |
| Selling Units: | Single item |
| Single package size: | 60X60X60 cm |
| Single gross weight: | 10.000 kg |
| Package Type: | aluminum layher stage can be packaged by standard export box or standard wooden box |
Introduction to specifications of aluminum alloy truss
1.Material specifications of aluminum alloy trusses
The material of aluminum alloy truss is generally high-strength aluminum alloy, and commonly used ones are 6061-T6, 6063-T5, etc. Among them, 6061-T6 has high strength and is an excellent strength material; while 6063-T5 is relatively light and can be used in light truss structures.
2. Cross-sectional shape specifications of aluminum alloy trusses
The cross-sectional shape of the truss has a great impact on structural strength, stiffness and other properties. The common cross-sectional shapes of aluminum alloy trusses include square tubes, round tubes, oval tubes and other shapes, among which square tubes and round tubes are the most commonly used.
3. Wall thickness specifications of aluminum alloy trusses
The wall thickness of aluminum alloy trusses is also one of the important factors affecting the strength of the truss structure. Generally speaking, the thicker the truss wall, the stronger it is, but it also weighs more. Therefore, in practical applications, factors such as the bearing capacity and weight of the truss need to be comprehensively considered to determine the appropriate wall thickness specifications.
4. The influence of specifications on the bearing capacity of trusses
The specifications of the trusses directly affect the bearing capacity of the structure. Generally speaking, for trusses of the same length and weight, the thicker the cross-sectional shape and the greater the wall thickness, the greater the bearing capacity. Therefore, when designing a truss structure, it is necessary to select appropriate specifications based on actual needs and load-bearing capacity requirements.
In short, the specifications of aluminum alloy trusses have a great impact on structural strength, bearing capacity and other properties. When selecting truss specifications, it is necessary to consider various factors such as actual application needs and load-bearing capacity requirements to achieve the best structural design effect.
Please contact us to discuss with shipping cost for Different country and different Area Please Notice our price is For Fixed Size
Product Parameters
| Length | 2 Meters(6.56ft) |
| Outer Diameter tube | 2 in (50mm).Diameter:11.42*11.42 in (290*290mm) |
| Diagonal bracing | 0.15 in(20mm),Centerpoint load:4,568 1bs(2,072kg) |
| Distributed load | 6,093 1bs (2,764kg) |
| Wall thickness | 0.08 in (2mm).Weight:26.451bs(12kg) |
| Approvals | TUV,CE,SGS |
Aluminum Alloy 6061-T6/6082-T6
| Main Tube | Vice Tube | Brace Tube |
| 50*4mm/50*3mm | 50*2mm/30*2mm | 20*2mm/25*2mm/30*2mm |
